Product Introduction
This constant current LED driver adopts advanced Zigbee 3.0 wireless communication technology for intelligent lighting control. It supports dual color temperature adjustment, enabling precise control over both the color temperature and brightness to create the perfect lighting ambiance for any setting
Zigbee Dual Color Temperature
1. Supports color temperature and brightness adjustment
2. Full range AC input, high power factor, no flicker
3. 2-channel constant current output, current can be set via DIP switch
4. Overload/short circuit protection, automatic recovery
5. Suitable for indoor LED lighting applications
Specification

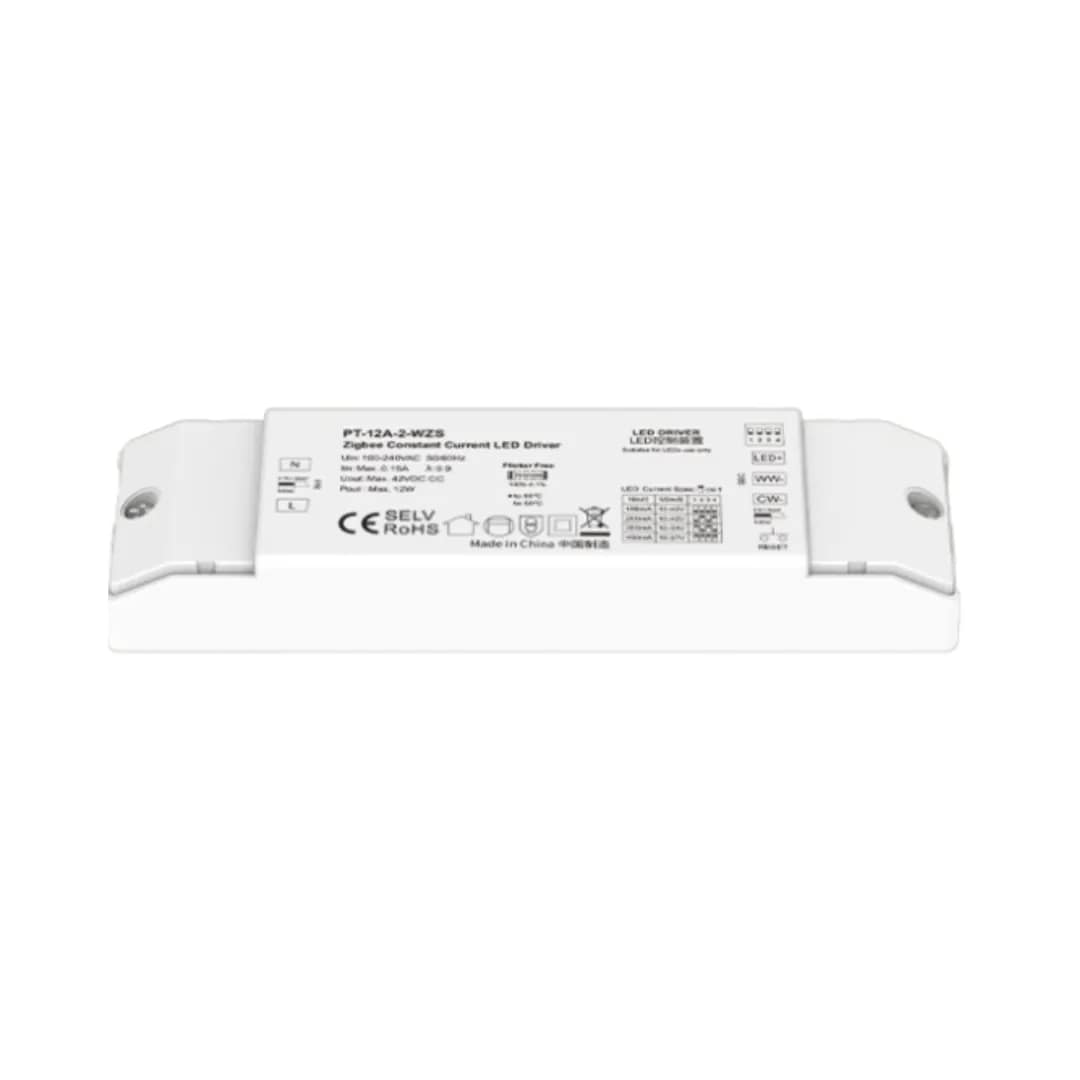

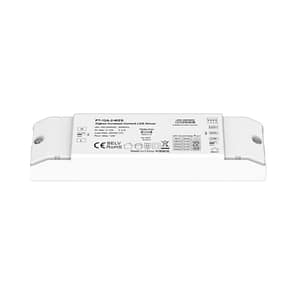

Product Model: PT-12A-2-WZS
Output Voltage: 10 ~ 42VDC
Output Current: 2x(150~450)mA
Output Power: <12W
Dimming Range: 0 ~ 100%
Input Voltage: 100 ~ 240VAC, 50/60Hz
Efficiency: ≥79% (full load)
Input Current: ≤0.15A/115VAC (full load)
≤0.08A/230VAC (full load)
Power Factor:≥ 0.98/115VAC (full load)
≥ 0.9C/230VAC (full load)
THD: <12%/230VAC(full load)
Standby Power: ≤0.5W
Operating Temperature:-20°C ~ 50°C
Operating Humidity: 20 ~ 90%RH
(non-condensing)
Storage Temperature:-40°C ~ 80°C
Storage Humidity: 10% ~ 95%RH
Waterproof Level: IP20
Dimensions: 131×37×20.5mm
Certification: CE
