Product Introduction
This ZigBee 3.0 LED constant voltage controller is tailored for modern lighting needs. It seamlessly connects to low-voltage single color LED strips, offering smooth, flicker-free dimming. This allows users to easily adjust brightness to create the ideal lighting atmosphere for any space
Features
Control low-voltage single color LED strips
DCpowersocket input
Relay capability for forwarding and routing signals
PWMfrequency: 4KHz
Specification

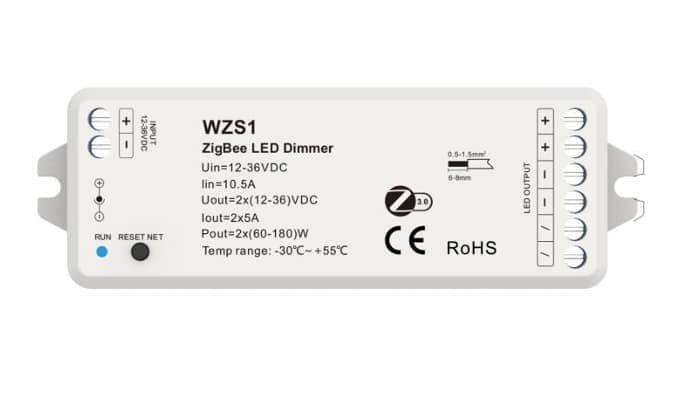

Product Model: WZS1
Light Type: Monochrome
Number of Output Channels: 2
Input Voltage: 12 ~ 36VDC
Input Current: 10.5A
Output Voltage: 12 ~ 36VDC
Output Current: 2CH, 5A/CH
Output Power: 2x(60 ~ 180)W
PWMFrequency: 4KHz
Input Signal: Zigbee 3.0
Dimming Level: 65536 (2^16) levels
Dimming Range: 0 ~ 100%
Operating Temperature:-30 ~ 55℃
Maximum Case Temperature: 85℃
IP Rating: IP20
Dimensions: 114×38×20mm
Certifications: CE, EMC, RED
