Product Introduction
This ZigBee 3.0 constant voltage LED controller is tailored for modern lighting needs. It seamlessly connects to
low-voltage RGB LED strips, offering smooth, flicker-free dimming. This allows users to easily adjust
brightness to create the ideal lighting atmosphere for any space
Features
Control low voltage RGB LED strips
DCpowersocket input
Relay capability for forwarding and routing signals
Support control via Belahome APP and HyPanel devices
Specification

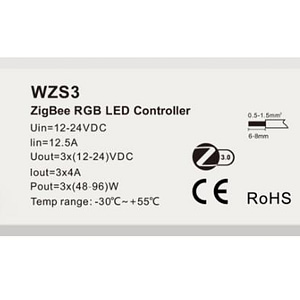

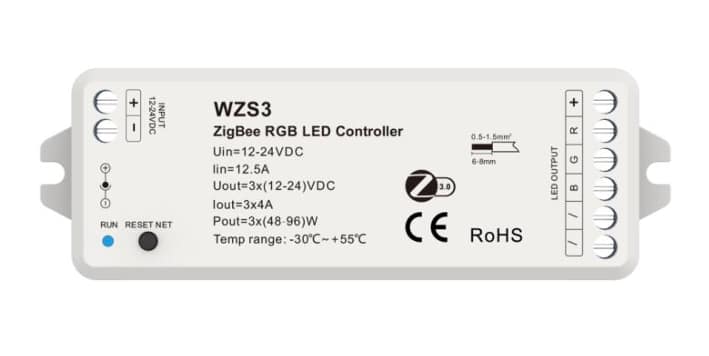

Product Model: WZS3
Light Type: RGB
Number of Output Channels: 3
Input Voltage: 12 ~ 24VDC
Input Current: 12.5A
Output Voltage: 12 ~ 24VDC
Output Current: 3CH, 4A/CH
Output Power: 3×(48 ~ 96)W
PWMFrequency: 2KHz
Input Signal: Zigbee 3.0
Dimming Level: 65536 (2^16) levels
Dimming Range: 0 ~ 100%
Operating Temperature:-30 ~ 55℃
Maximum Case Temperature: 85℃
IP Rating: IP20
Dimensions: 114×38×20mm
Certifications: CE, EMC, RED
