Product Introduction
This ZigBee 3.0 constant voltage LED controller is tailored for modern lighting needs. It seamlessly connects to low-voltage RGBW LED strips, offering smooth, flicker-free dimming. This allows users to easily adjust brightness to create the ideal lighting atmosphere for any space
Features
Control low-voltage RGBW LED strips
DCpowersocket input
Relay capability for forwarding and routing signals
Supportcontrol via Belahome APP and HyPanel devices
Specification

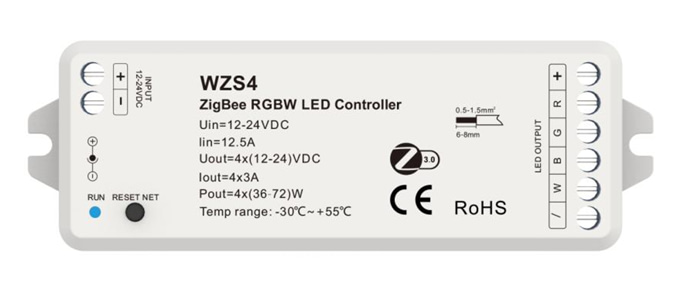

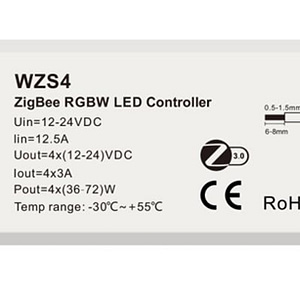

Product Model: WZS4
Light Type: RGBW
Number of Output Channels: 4
Input Voltage: 12 ~ 24VDC
Input Current: 12.5A
Output Voltage: 12 ~ 24VDC
Output Current: 4CH, 3A/CH
Output Power: 4×(36 ~ 72)W
PWMFrequency: 2KHz
Input Signal: Zigbee 3.0
Dimming Level: 65536 (2^16) levels
Dimming Range: 0 ~ 100%
Operating Temperature:-30 ~ 55℃
Maximum Case Temperature: 85℃
IP Rating: IP20
Dimensions: 114×38×20mm
Certifications: CE, EMC, RED
